Task 1: Memory Dump Initial Analysis
The on-site forensic investigator provided us with a memory dump from John’s computer. Our job as secondary forensic analysts is to dig deep and find all necessary information.
Step 1: Identifying the Memory Profile
Before diving into any analysis, we first need to determine the correct memory profile. We can achieve this using the imageinfo or kdbgscan plugin.
Command used:

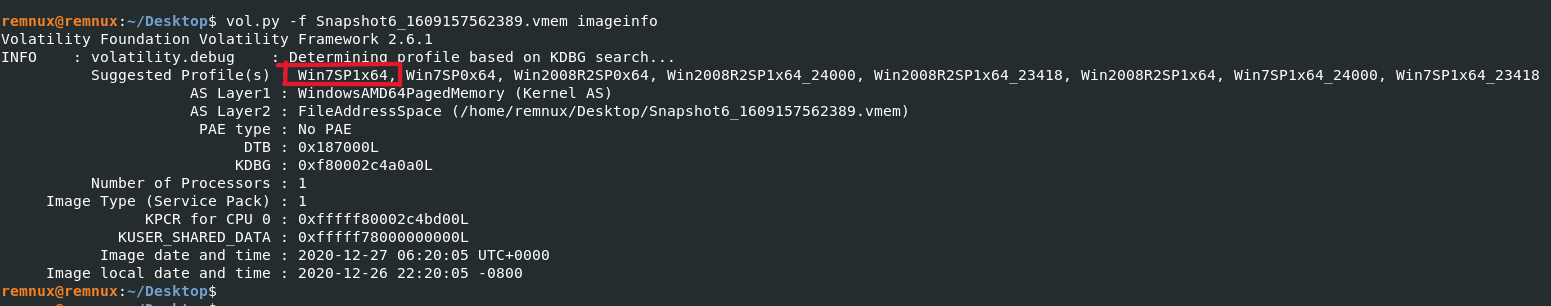

vol.py -f Snapshot.vmem imageinfo
From the output, multiple suggested profiles appeared. We will select the first one: Win7SP1x64, which is typically the most accurate.
Note: All subsequent commands will now include the profile parameter --profile=Win7SP1x64.
Task 2: Find John’s Password
To retrieve John’s password, we’ll perform a hash dump and crack the obtained hashes.
Step 2: Dumping Hashes
We use the hashdump plugin to extract password hashes.
Command used:

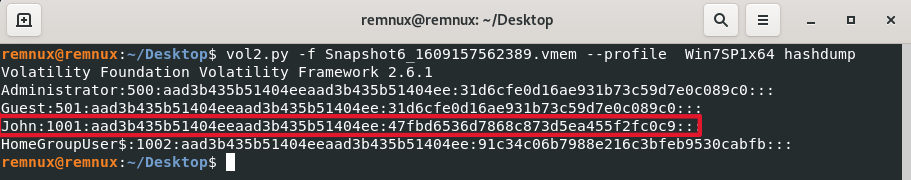

vol.py -f Snapshot.vmem --profile=Win7SP1x64 hashdump
The hash corresponding to the john user is captured.
Step 3: Cracking the Hash

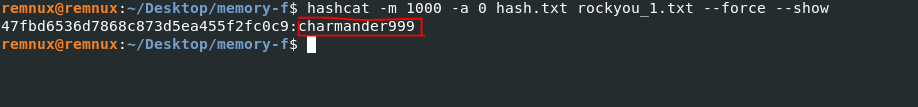

We can use tools like hashcat or john the ripper to crack the hash. In this case, I used hashcat.
Success! The cracked password is displayed.
Task 3: Investigating Last Shutdown and Console Commands
Q2: When was the machine last shutdown?
First, we attempted to find the Last Known Good control set to gather shutdown time information.
Step 4: Identifying the Last Control Set
Using the printkey plugin:

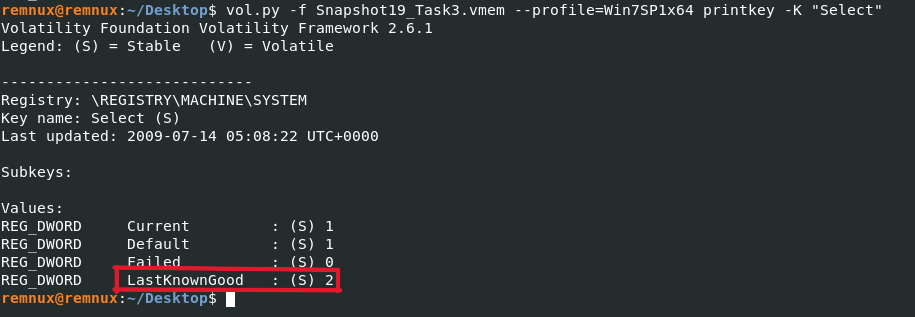

vol.py -f Snapshot.vmem --profile=Win7SP1x64 printkey -K "Select"
We found that CurrentControlSet was set to 2.
Then, we checked the ControlSet002\Control\Windows registry key:

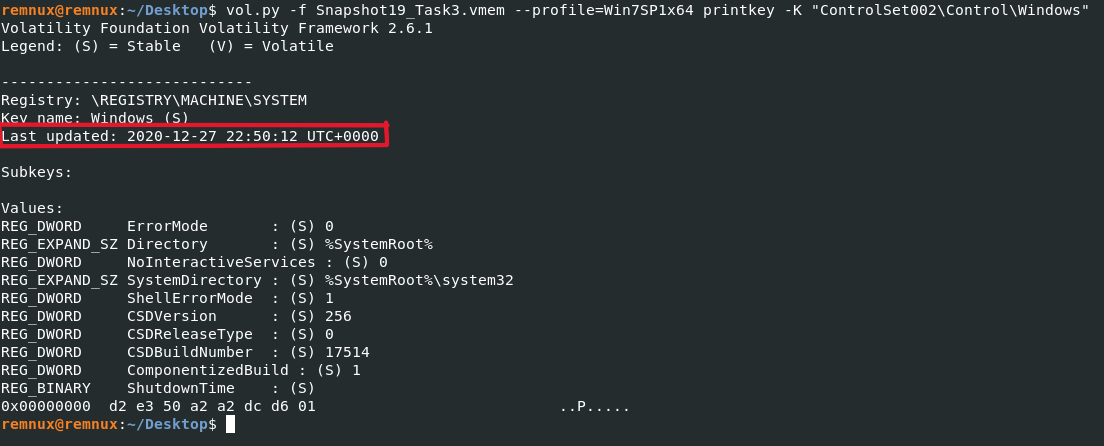

vol.py -f Snapshot.vmem --profile=Win7SP1x64 printkey -K "ControlSet002\\Control\\Windows"
We found the shutdown time recorded here.
However, a better method exists!
Step 5: Using Shutdown Plugin
Volatility offers a plugin that simplifies shutdown time extraction.
Command:

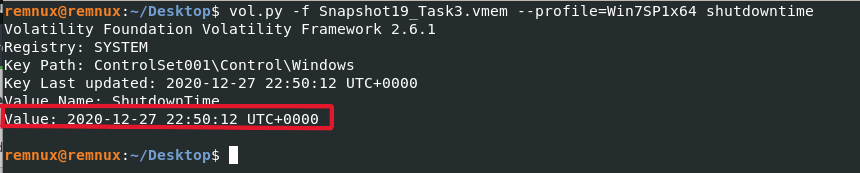

vol.py -f Snapshot.vmem --profile=Win7SP1x64 shutdowntime
Result: The exact same shutdown timestamp is obtained.
Q3: What did John write?
We now investigate what John was typing on his machine.
Step 6: Console Command Extraction
The consoles plugin retrieves command-line inputs.
Command:

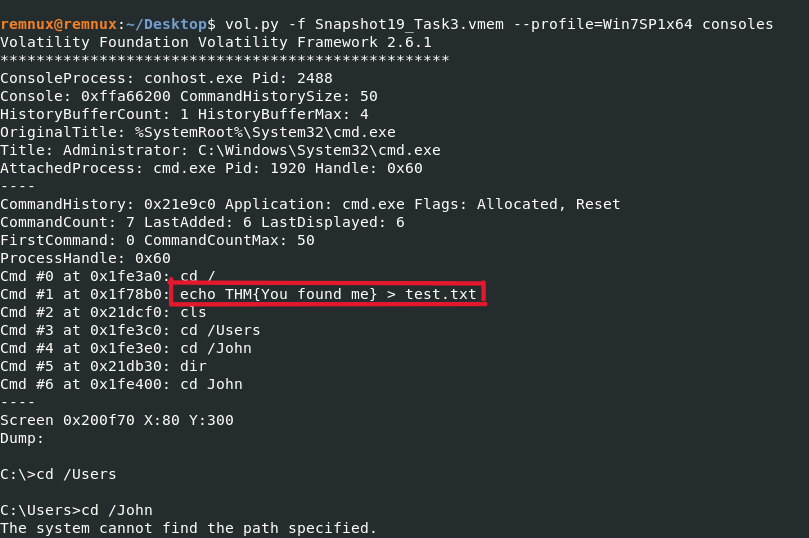

vol.py -f Snapshot.vmem --profile=Win7SP1x64 consoles
Result: We found a command window showing “you found me” — an important flag.
Task 4: Recovering TrueCrypt Passphrase
During the investigation, it was found that TrueCrypt was installed on the machine. Our goal is to find the encryption passphrase from memory.
Step 7: Searching for TrueCrypt Keys
Q4. What is the TrueCrypt Passphrase?
Whenever you’re investigating something specific like TrueCrypt, the first step should always be to check if a plugin exists in Volatility.
If a plugin is available, it makes the work way easier; otherwise, you’d have to extract and search manually.
So, I quickly did a Google search to see if Volatility has a TrueCrypt plugin available.
Good news, the plugin does exist!
With that confirmed, I proceeded to use the plugin on the memory dump.
After running the appropriate Volatility command with the TrueCrypt plugin, I was able to successfully extract the passphrase:
As you can see above, the passphrase was recovered directly from the memory.
Conclusion
In this walkthrough, we methodically used Volatility to extract crucial forensic evidence from a memory dump. From determining the system profile, dumping and cracking password hashes, analyzing system shutdown events, extracting command history, and uncovering hidden encryption keys we demonstrated how memory forensics plays a critical role in modern cyber investigations.
Volatility, combined with methodical steps and the right mindset, proves itself to be an indispensable tool for any forensic investigator.
